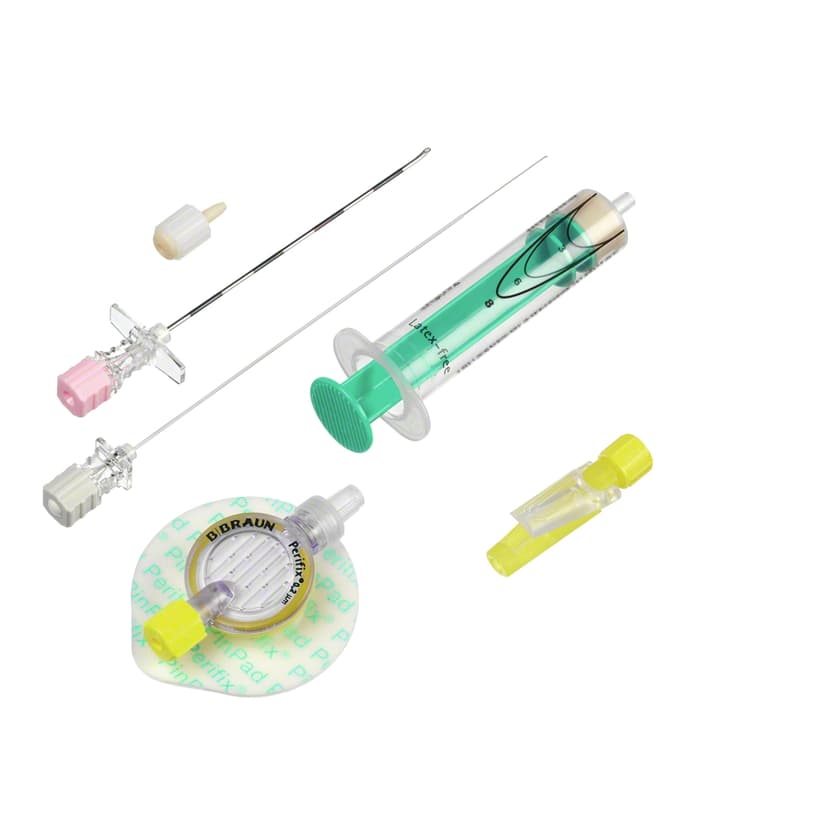

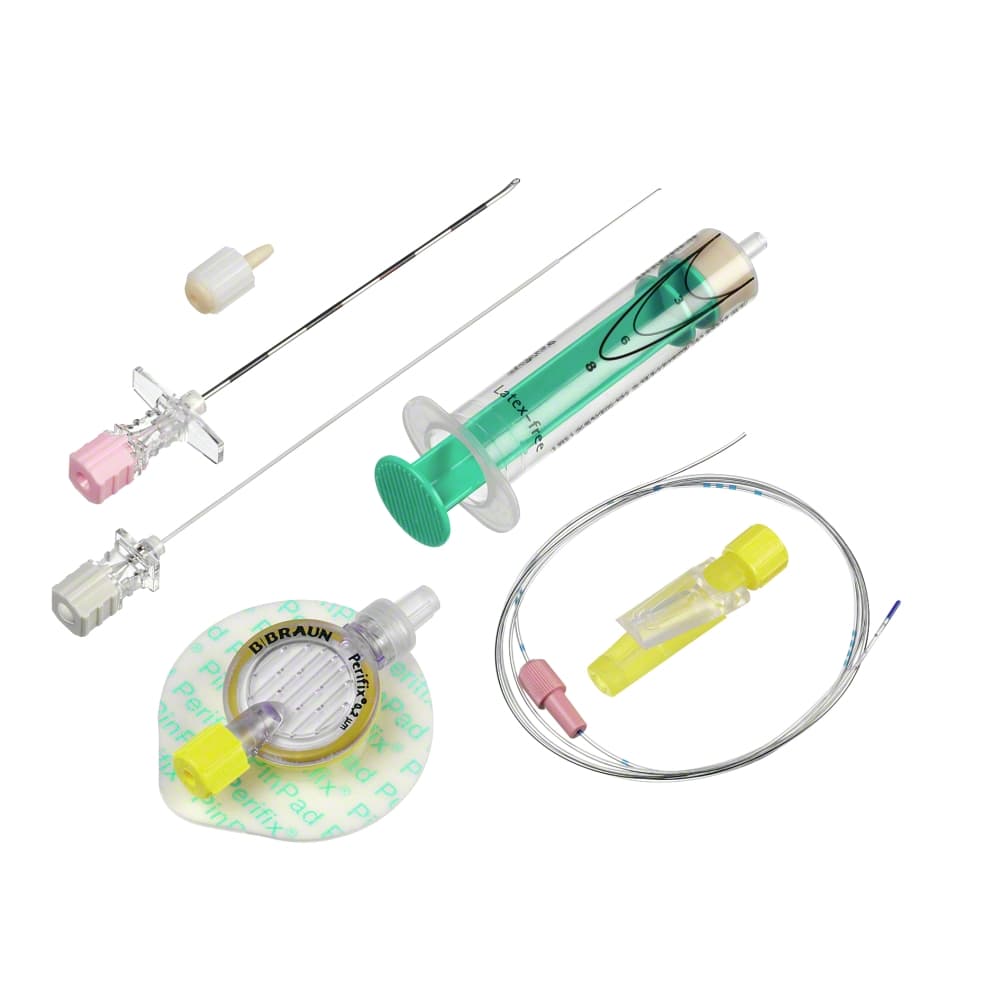

Katheter-Sets zur kombinierten Spinal-Epiduralanästhesie
Ermöglicht Rotation der Spinalnadel, auch in fixierter Position
Docking System: Vermeidet den schwierigen und unbequemen Griff um die Spinalnadel in Position zu halten (bei Ausführung mit Perifix® Soft Tip Katheter)
Pencan® oder Spinocan® Spinalkanüle
Mit Beschichtung zur Führung in der Epiduralkanüle
Keine Materialbeschädigung durch "Back-eye"-Technologie
Mit Markierung um den Austritt der Spinalkanüle aus der Epiduralkanüle anzuzeigen
Perican® Epiduralkanüle
ø 1,30 x 88 mm, 18 G x 3 1/2"
Tuohy-Schliff
Zusätzliche Öffnung in der Tuohy-Biegung für Austritt der Spinalkanüle in gerader Richtung "Back-eye"-Technologie
Perifix® Epiduralkatheter
Perifix® Standard oder Perifix® Soft Tip
Länge 100 cm
Einführhilfe
Perifix® Katheterkupplung
Zuverlässige Verbindung ohne Gefahr den Katheter zu verschließen
Perifix® L.O.R.-Spritze, 8 ml
Luer-Steck-Ansatz
Für die „Loss-of-Resistance“ Methode
Perifix® EF Epidural-Flachfilter 0,2 µm
Füllvolumen 0,45 ml
Druckbeständig bis 7 bar
Perifix® PinPad
Zur Fixierung des Perifix® EF Epidural Flachfilter 0,2 µm
