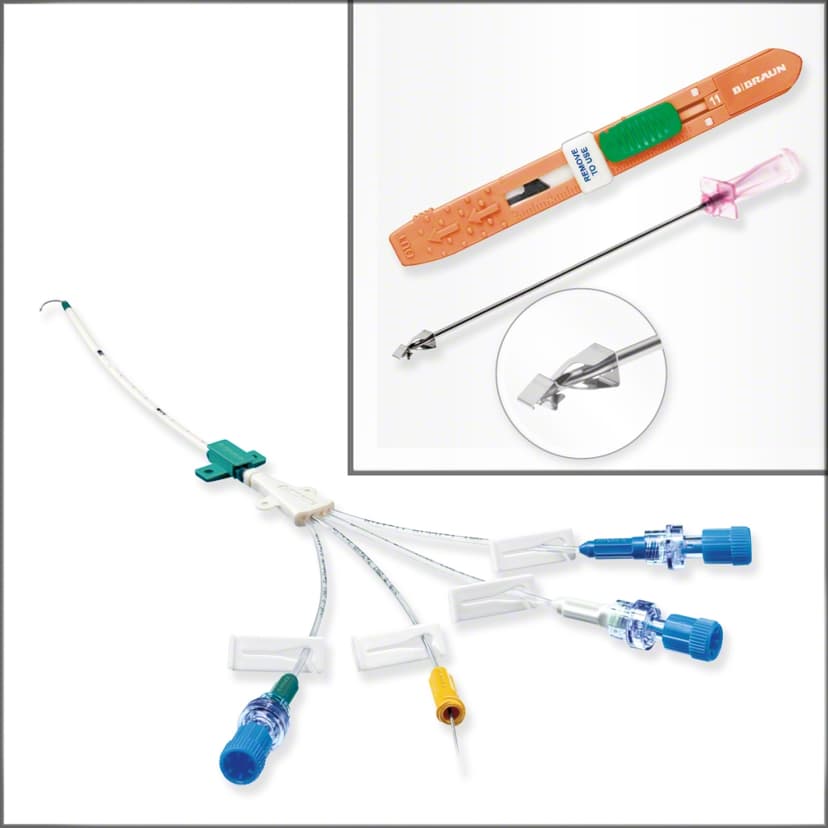

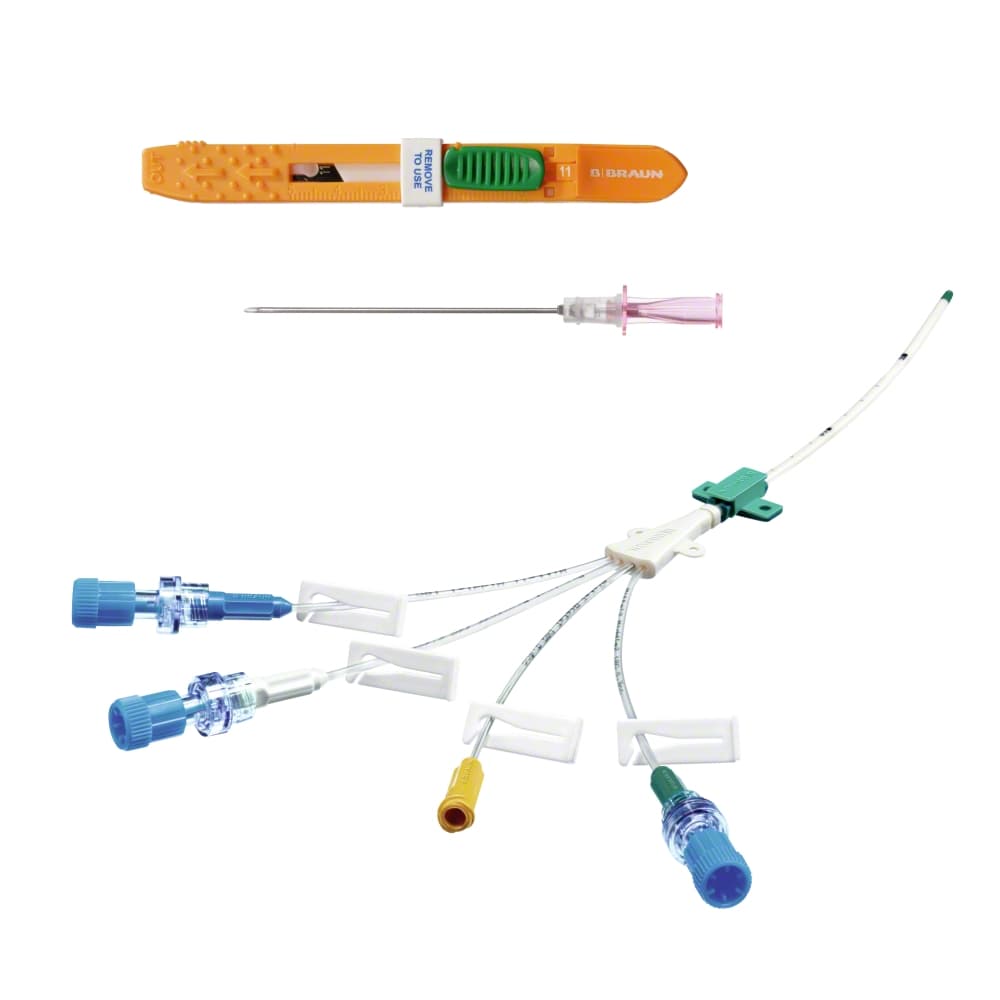

Vierlumige zentralvenöse Katheter zur Katheterisierung der oberen Hohlvene nach der Seldinger-Methode mit der Möglichkeit zur intraatrialen EKG-Ableitung inkl. einer Seldingerkanüle mit Sicherheitsmechanismus und einem Sicherheitsskalpell
Seldingerkanüle mit Sicherheitsmechanismus, 18G/70 mm
Führungsdraht 0,035"/0,9 mm Ø, Typ „Nitinol“
Knickbeständig, mit flexibler J-Spitze
Dilatator, passend für alle Kathetergrößen
Omnifix® Luer-Lock Spritze 5ml
Sicherheits-Skalpell
Katheter aus PUR mit Soft-Spitze
Röntgenfähig
Anzahl Katheterlumen und Lumen-Ø:
Vierlumig:
1. Kanal, distal = 16 G
2. Kanal, mittel 1 = 18 G
3. Kanal, mittel 2 = 18 G
4. Kanal, proximal = 14 G
Längenmarkierungen zur Lagekontrolle
Transparente Schlauchleitungen mit Schiebeklemmen für den
kurzzeitigen Verschluss, mit farbig unterschiedlichen Luer-Lock
Ansätzen
Fixierflügel an der Katheterverzweigung zum Befestigen des
Katheters
Aufgesteckter, justierbarer Fixierflügel zur Nahtbefestigung an der
Katheteraustrittsstelle (Katheterlängen 20 und 30 cm)
EKG-Verbindungskabel für Universaladapter
Steckclip
Safsite®-Ventile zum vereinfachten Befüllen der Katheterlumen und Wechsel der Zuleitungen
