Telemetrischer Sensor zur Messung der Druckverhältnisse innerhalb eines Shuntsystems.

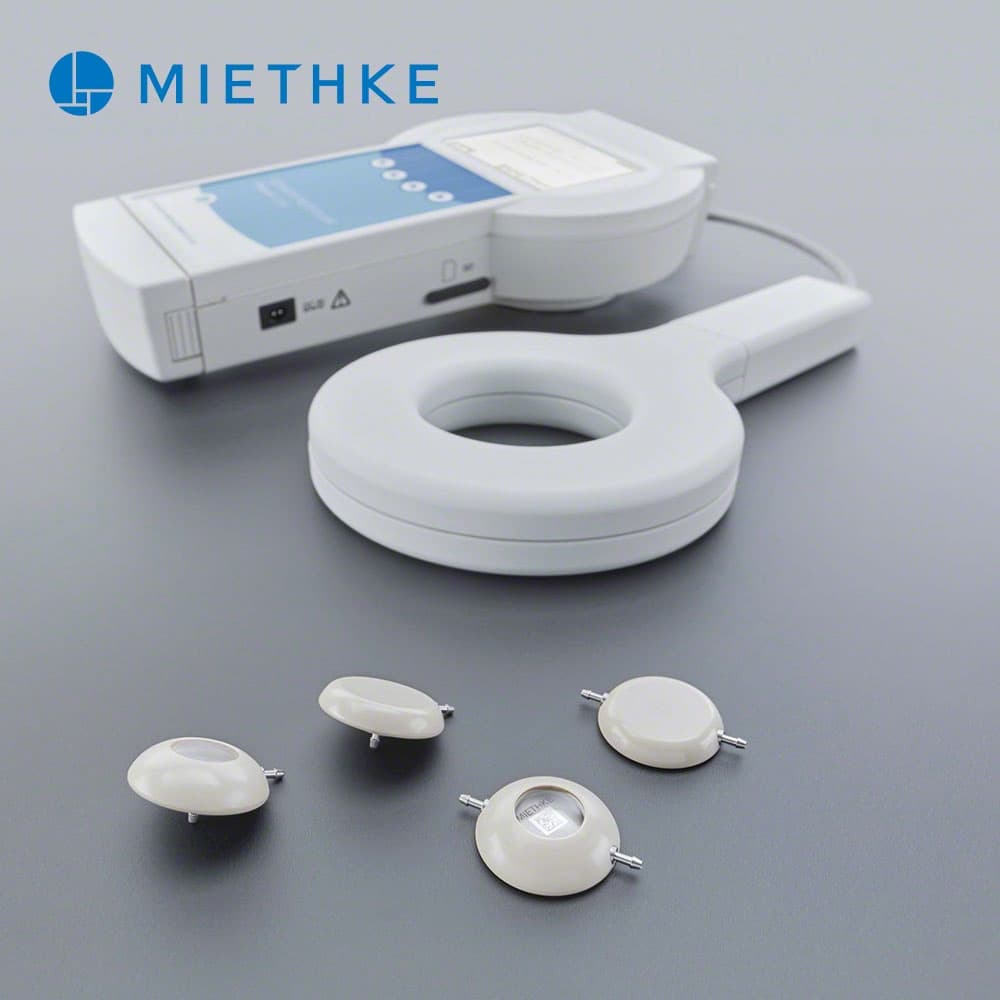

Der Miethke M.scio Sensor ist die erste langzeit-implantierbare Messzelle zur Messung der Druckverhältnisse innerhalb eines Shuntsystems. Sie überträgt die Druckwerte mit Hilfe eines Lesegerätes telemetrisch und somit nicht-invasiv.
